Broiler Poultry Farming Chicken Feeding Line Drinking Line Automatic Equipment Rose

Product information

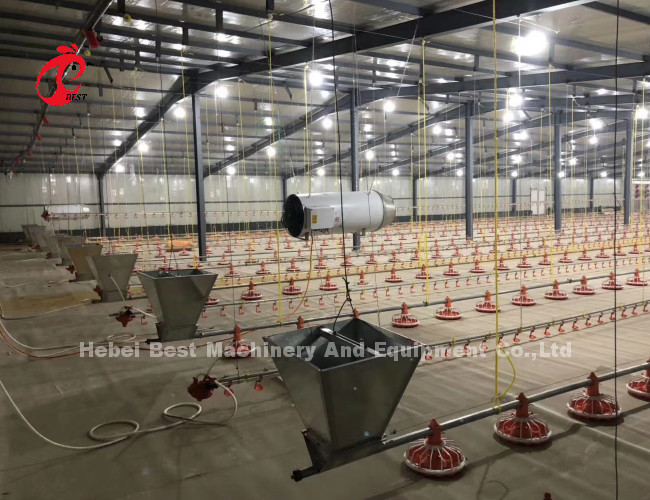

Poultry farm chicken free raising pan feeding system
Consists of a driving device, a hopper, a conveying pipe, an auger, trays, a suspension lifting device, an anti-perching device, and a feed sensor

The main function of the system is to convey the feed in the hopper into each tray to ensure the eating of the broiler and automatically control the conveying opening/closing of the motor by the material level sensor to feed automatically

Product specification
Automatic feeding line and drinking line for broiler

Product advantage of feeding and drinking line
1. Rills feed pan with special design, can save the feed
2. No need to open the feed pan. Feed downfalls to the side of the shallow plate, to make sure that even the birds stand outside of the pans, they can also eat feed conveniently
3. Colorful, birds can easily see the feed pan and eat the feed
4. PP material, firm and durable, corrosion resistance, long service life
5. Convenient to dismantle and easy to clean

Product description of automatic feeding and drinking line
1. Motor
Slowdown motor driver 750w, 380v, transmission speed 450 kg per hour
2. Hopper
Bin volume 120L, material, hot deep galvanized sheet, material thickness 1.5mm
3. Feed pipe
Hot galvanized steel with the zinc thickness of 275 g per sq.m
4. Auger
Import from South Africa, high quality and durable
5. Hanging system
Composed of winch, pulley, fixed parts, steel wire rope and wire clamp, etc. Feed pipe, hot galvanized steel with the zinc thickness of 275 g per sq.m
6. Feeder sensor
Installed in the feed pan, control the drive motor starting or stop

China Chicken Cage and poultry equipment Factory

Hebei Best Machinery And Equipment Co., Ltd., found in 1996, 360KM from BEIJING city, from raw materials to finished products, strict implementation of ISO 9001:2008 quality management system

Nigerian branch chicken cage and poultry equipment factory

After Sinoma Office, 200 Meters Near Danco Filling Station, Lagos/Ibadan Expressway, Lagos State, Nigeria, production line is from our Chinese factory directly, 3 to 5 years longer using than local chicken cage

Our market

Products have been exported to many countries, such as Australia, Cameroon, Grenada, Ghana, Gambia, Guyana, Honduras, Haiti, Hungary, India, Kenya, Sir Lanka, Madagascar, Malaysia, Mozambique, Namibia, Nigeria, Pakistan, Seychelles, Trinidad and Tobago, Tanzania, Uganda, United Kingdom, South Africa, Zambia, Zimbabwe,etc
Now we had office and warehouse in Nigeria, Ghana, Kenya, Uganda, etc


Our products

Our Poultry Cages include the Poultry Battery Cages, Baby Chicken Cages, Broiler Cages, Chicken Layer Cages, grounding feeding system and incubator. And also Poultry Equipment include Automatic Feeding System, Automatic Manure Cleaning System, Automatic Egg Collection System and Chicken Farm Exhaust Fan, etc
