Manure Processing System Of Manure Dewatering Machine Manure Dry
Machine Doris
Manure dewatering machine , “Spiral extrusion”manure dewatering
machine -dehydration .The machine dry off , solid-liquid separation
,dispose , dry the animal droppings.Farmers also called manure
dryer; manure drying machine, manure processing machine or manure
dewatering machine
Usage-Waste to Wealth
put the solid content less than 50% of the chicken manure, cow
manure, pig manure and other animal waste, for dry and wet
separation
1. Application
expand the scope of knowledge-Help farmers change manure to money!
1) Solid pig manure, separated by dehydration, After processing,
the extruded solid matter is almost odorless., Viscous small can be
used directly as fertilizer, or make cow mattresses
2) After separation of pig manure, stir in the chaff, Add the
fungus fermentation, Granulation can be made into compound organic
fertilizer.
3) It can also be made into pellet feed, which is a good feed for
fish.
4) Fertilizer for flowers/special economic crops, The organic
matter that can transform the soil
Additional economic benefits can be obtained by selling organic
fertilizers.
5) Alternative coal is used as fuel and can burn up to 5000
calories , The effect is ideal, and the economic cost is only
one-tenth of that of coal
Large waste disposal system
2. Specifications
| Size | Whole size | Main power (kw) | Pump Power (KW) | Mesh Screen(mm) | Output ( Ton/hour) | Space (m2) |
| DT-1 | 2x0.8x1.5m | 380v 4kw | 3 | 200mm | 3m2, 2 tons | 2 |
| DT-2 | 2.3x0.8x1.5m | 380v 5.5kw | 3kw | 280mm | 5m2, 5 tons | 2 |
Handling capacity: liquid (solid content < 50%)
| Treatment | cow dung | pig manure | Chicken manure | biogas residue |
| BEST200 | 8-10 | 8-10 | 8-10 | 5-8 |
| BEST280 | 10-15 | 10-15 | 10-15 | 10-15 |
(solid substances are generally 2-6 cubic meters in accordance with
the difference in the processing speed of the material viscosity
and dry humidity. The processing capacity is based on the
differences in the region)
3. The main parts of accessories
Material or configuration(High strength spiral shaft ,Corrosion
resistant alloy spiral blade , The screen is made of high quality
stainless stee,The host body is cast iron casting
1) motor one set
2) submerged pump one set ,filter screen is wedge-shape ,304
Stainless steel filter screen,the space according to Handle things
differents have 0.25mm, 0.5mm, 0.75mm, 1.0mm
3) Steel wire hose,The spindle and spiral blade are stainless steel
4) contorl box/cabinet

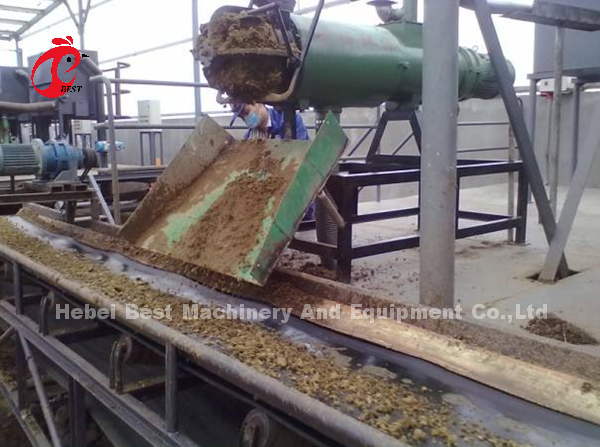

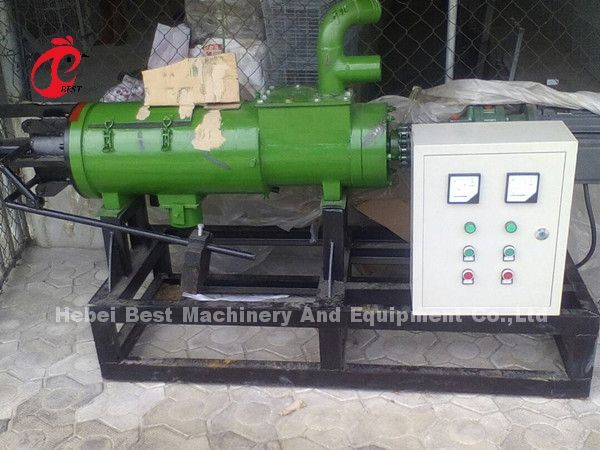

4. The machine Application pictures
5. Working principle
The submerged pump will lift the fecal water into the solid-liquid
separator, and the extrusion auger will gradually push the fecal
water to the front of the body. At the same time, the pressure at
the front edge will be continuously increased to force the water in
the material to squeeze out of the mesh screen and flow out of the
drainage pipe under the action of edge pressure and belt
filtration. The work of the solid-liquid separator is continuous.
Its materials are continuously lifted into the body, and the
pressure at the leading edge is increasing. When it is large to a
certain extent, the discharge port will be pushed open and extruded
to achieve the purpose of extrusion
