H Type Full-Automatic Broiler Equipment For Large Broiler Scale
Farm In Africa Adela
H type broiler equipment has the advantages of simple structure,low
cost,automatic feeding, automatic water,automatic dung
cleaning,environment automatic control characteristics.The cage
scaffold is made of material with hot dip galvanizing process,and
have a lifetime of up to 15 years,usually the broilers quantity
more than 15000 consider use it in farm
1. The H type broiler cage
For the broiler cage size usual is 1250mm by 1000mm by 450mm for 4
tiers cage,include the cage frame,mesh,leading end and after end of
manure clean system,accessories for installation,base net,support
plate,block chicken plate,the brood crib,big crib,lengthways dung
cleaning system,head and tail connector of the pressure regulating
valve,stay wire of the drinking line,lifter of the drinking line
and so on
2. The automatic feeding system
The feeding system include the silo for stock the feed,the dragon
conveying system for transport the feeds from silo to the feeding
machine,and the automatic feeding machine
the silo capacity have the 8ton,10ton,14ton....,use the silo hold
the feeds,could keep the feeds fresh no contaminate,the silo
usually connect with the dragon conveying transport the feeds to
the house directly
Feeding machine
the feeding machine include the support system,hopper traveling
system,feed amount adjusting system,power distribution system,turn
on the machine when it walks,the feed will be evenly distributed
into the feed trough finish the feeding work,use the feeding system
could save time,for one 70 meters chicken house finish feeding only
need 5-8 minutes,one chicken house only need one worker operate the
machine,save more labor

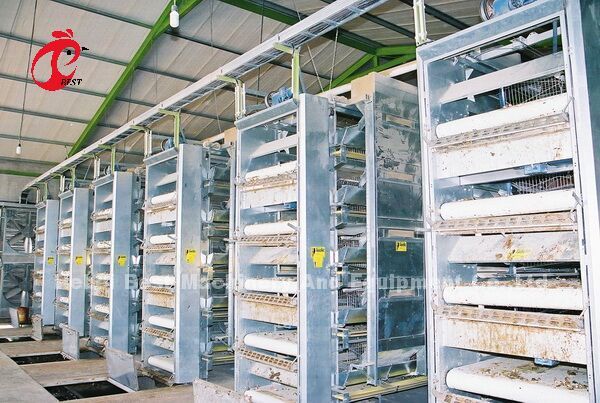

3. Manure clean
For the H type manure clean is the belts way,underneath every tier
of cages and towed by driver reducer engines to clean the
manure,this strong and robust construction is operated without
problem even in very long chicken house
Rollers and the scrapers located on each tier spills the manure to
the discharging manure conveyor at the end of the chicken house and
the manure is removed from the house by it
4. Temperature system
Some farm also will choose the Fan and cooling pad to adjust the
temperature in house,make the farm cool
