A frame or H frame automatic feeding system for layers chicken cage
Doris
Automatic feeding equipment is suitable for large farms with more
than 20000 laying hens. Our factory can provide A-type automatic
feeding equipment, H-type automatic feeding equipment, crown block
automatic feeding equipment and semi-automatic feeding equipment of
feeding trolley
The farm cases of our company include the type a automatic of 20000
laying hens in Nigeria, the type a automatic of 30000 laying hens,
the type a automatic of 100000 laying hens, the type H automatic of
100000 laying hens in Papua New Guinea, and the type H automatic of
50000 laying hens in Niger and other countries

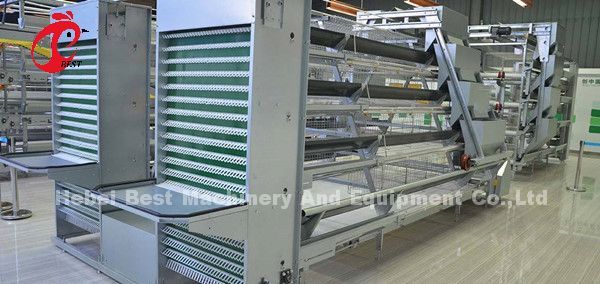

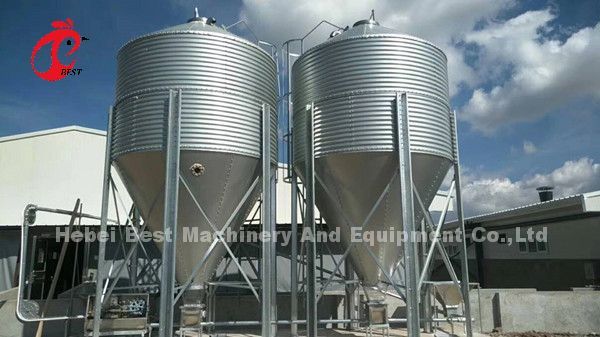

Automatic feeding system for LMS scale farm, usually used with Silo
and feeding conveyor system.The feeding automatic system including
support system, traveling drive system, hopper traveling system,
discharging driver system, feed amount adjusting system, power
distribution system
1. Classification
Ladder type automatic feeding equipment ( match with A frame of
layer.broiler or pullet cage system )
Tiered automatic automatic equipment (match with H frame of layer
broiler or pullet cage system)
2. Specification
size (L*W*H)depends on the cage size
Electromotor power:1.5KW,380V
Output rate: >=150KG/H
Structure weight:600KG
Traveling speed:10M/min
Container capacity:35--80KG/each
Tiers: three tiers, four tiers, five tiers or more
customize: yes
Automatic feeding system with high-efficiency, reducing 80% labor
cost .Chicken food will add in feeding hopper by workers or by
automatic conveying pipe or by feed silo, hoppers with its frame
will go and come back from beginning of chicken cage to the end
under electricity, normally one row of chicken cage, one system of
automatic feeding hopper system
H type egg hen cage system has the characteristics of high degree
of automation, high density, effective saving of land and labor
costs, separation of chicken house and human residential area to
avoid disease transmission, automatic fertilizer discharge system
to effectively reduce environmental pollution and improve chicken
raising efficiency, and increase intelligent environmental control
system. Customers can choose semi-automatic or full-automatic
chicken cage equipment according to their own budget
3. Working principle
Pulling rope driven by a motor provide power to the hopper frame.
when it walks, the feed will be evenly distributed into the feeder
and complete the feeding
4. Advantages
1.saving time,complete feeding in 5-8 minutes for 70 meters chicken
house
2.saving feed,it can avoid spatter by people
3.saving labors,1 person 1 10000 chicken house
5. Automatic feeding system
The feeding process adopts automatic control, which can adjust the
use of materials and prevent the waste of feed.
6. Automatic drinking water system
High quality drinking cup, pressure valve and 360 degree drinking
nozzle can effectively prevent water leakage. The drinking water
system adopts closed pipeline system to minimize water pollution
7. Automatic egg collection system
Perfect unfolding angle of the bottom grid minimizes damage. It has
a strong ability to collect eggs, collecting up to 20000 eggs per
hour, and collecting and transporting eggs between different
chicken houses
8. Automatic fecal cleaning system
conveyor belt type is applicable to both A-type cage and H-type
cage, which can reduce labor intensity and labor cost and keep the
chicken house dry and clean
9. Central integrated control system
the system is a modular system that manages all aspects of the
henhouse, such as climate, temperature, feeding, drinking, weighing
and ventilation system. Management computer is the core of poultry
farm, which is convenient for monitoring the whole poultry farm
