Automatic Chicken Equipment Battery Layer Poultry Farming Cage
Systems With Automatic Feeding Machine Chicken Cage Mia
1. Specifications
A-96 birds cage, size is 2m by 2m by 1.45m, 4 cell, 4 birds/cell
A-120 birds cage, size is 2.2m by 2.4m by 1.65m, 5 cell, 4
birds/cell
A-128 birds cage, size is 2m by 2.4m by 1.85m, 4 cell, 4 birds/cell
A-160 birds cage, size is 2m by 2.4m by 1.95m, 5 cell, 4 birds/cell
Material: Low carbon steel wire , Q235 steel wire
Hot galvanized: lifespan is 25 years around
Cold galvanized: lifespan is 7-10 years around

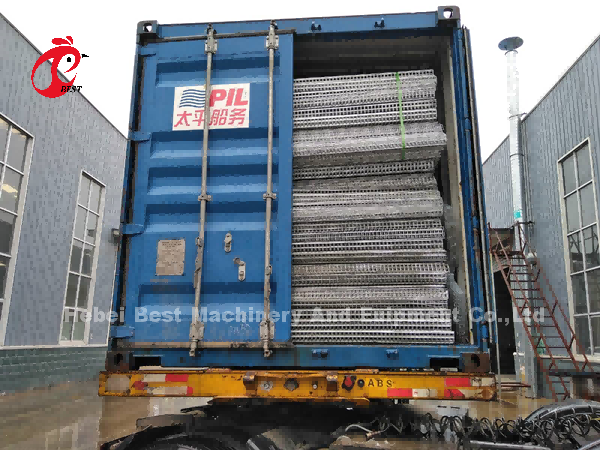

Full container loading: cage and cage stand have no package, some
fittings are in plastic bags and
carton box
2. Advantage of automatic cage
● Intensive management and automated control. Achieve automatic
feeding,drinking,manure cleaning,egg collecting and environment
control,can help to improve working efficiency and save labor cost
● Have sufficient feed, water position uniformity are better
chicken, chicken limited to the minimum amount of exercise, energy
consumption, save feed
● Chicken manure and chickens are completely isolated, manure can
be directly down to the ground, chicken house dust greatly reduced,
less chance of disease from infected feces, greatly reduced the
mortality of chickens
● High-density raising,saves land and investment. The chicken cage
could easy to observe birds, clustering or choose weak easily
●Suitable for both closed and open chicken house. Automatic control
of ventilation and temperature can meet the requirement of the
birds. Some place can also used in open house, A type structure
have better ventilation
3. 300000 birds farm house design
4. Poultry farm system
(1) Automatic feeding system
About the automatic feeding system, it is well distributed and less
consumed in feeding;It can reduce labor intensity and labor
costs,but improve the efficiency;It has smooth running ,low
noise,but a long lifespan
(2) Automatic Drinking system
According to the customers' requirements,the front-end part of the
drink system can be optionally equipped with the water pressure
regulators,filters,smart meters
(3) Automatic manure removal system
Conveyor belt type of the automatic manure removing system can
reduce the labor intensity and labor costs,make it convenient to
clean up manure timely,keep the chicken house dry and improve the
manure utilization
(4) Intelligent environmental control system
10groups relay input,can control 6 groups of fans
Access to 6 temperature sensors,2 humidity sensors,1 ammonia gas
sensors
5. About us
Our service system includes design of turn-key poultry farm
project, production, transportation, installation (and clearance in
some countries ) of automatic chicken cage of day old chicken, egg
laying chicken and broiler, feed mill, manure drying system and
slaughtering equipment, meanwhile inspecting and purchasing of
other products you want to buy
