    Angle Bar Frame Poultry Battery Cage System H Type Layer Chicken Cage Africa Doris

    Ask Lasest Price
    Price : USD 65-200/set
    Payment Terms : L/C, T/T
    Supply Ability : 10000 Set/Month
    Delivery Time : 5-8 work days
    Brand Name : BEST
    Model Number : A or H type of poultry cage
    • Product Details
    • Company Profile

    Angle Bar Frame Poultry Battery Cage System H Type Layer Chicken Cage Africa Doris

    Design chicken farm project and layer chicken cage equipment-Africa branch chicken cage Doris

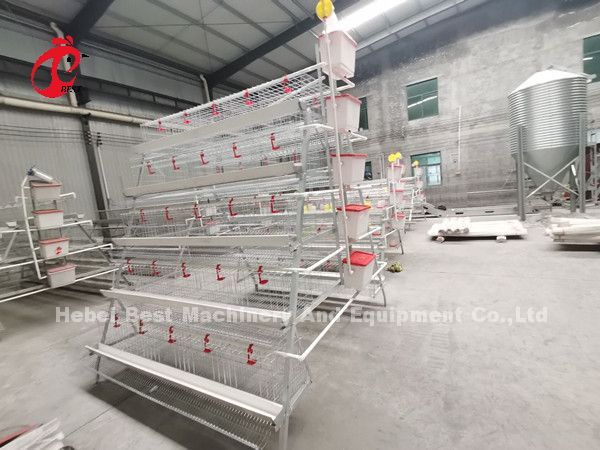

    1. A type layer cage or H type chicken cage
    Layer cage also called poultry cage or battery cage or chicken cage and mainly is rearing egg point of lay chickens, after pullet growing up to 12 weeks or 16 weeks they will transfer into the layer chicken cage
    Its biggest advantage is lower cost, increasing egg production, easily handle chicken waste and reduce disease transmission and save land space,easily manage the farm and make chicken farm more modern. It is very popular in Afrian poultry farm with from 100 birds to 50,000 birds.And hot sale in Nigeria market
    2. Chicken cage accessories and details description
    A type layer chicken cageCage specification

    A type 3-tier 5-door. 2.2m by 2.4m by 1.95m(L*W*H) 160 pcs/set.Q235 steel wire

    Hot-dip galvanized wire, smooth ,heavey galvanized cage

    Cold galvanized cage or Pvc coated

    surface, burr free, strong anti- corrosion, long lifespan 20-25 years

    Cage mesh and frame/standCage mesh

    top mesh, bottom mesh,parting mesh,cage door

    Cage mesh classification :slope back mesh, corner back mesh

    Cage frame

    A type cage frame and H type cage frame

    U type steel or Angle bar frame

    Semi automatic feeding systemFeed trough

    Material:PVC,high zinc plate,common galvanized plate,aluminum alloy plate

    Color can be white or green

    Automatic drinking systemNipple drinkers

    spring type ,steel ball type and with cup one, spring one uses less, steel ball type with cup is high quality and durable, install it inside the cage or on the top mesh cage

    6-point white steel ball chicken water dispenser, connected with 6 pipes (25mm pipes), wear-resistant resin ABS engineering material stainless steel ball, 360 degree automatic water outlet, no blocking and no water leakage, and the service life is 5-10 years

    Water pipePvc new material,connect with “I”connector ,”T”connector,”L”connector
    Water tank10Liter ,connect with fliter
    Installation systemInstallation toolspipe fixed rope,feeder guy, feeder clip,wire, screw, pliers


    3. Use chicken cage advantages than rearing birds one ground

    1) Save chicken farm space or land than deep litter system,raising capacity is three or four times than ground feeding
    2) Easier to clean up the chicken waste
    A type layer cage use A frame staircase structure ,chicken waste will drop into the pit under the cage directly ,it will be more easier to clean up the chicken waste,can save more time and worker on this job
    3) Reduce disease occurrence
    Compare with H type layer cage ,A type cage has better ventilation effect ,it can reduce disease occurrence
    4) Reduce feed waste
    Using feed trough can save more feed than feeders ,it will reduce the cost on feed
    5) Improve egg production
    Cage system can reduce the activity of chickens, thereby increasing egg production, reducing egg breakage rate, improve egg production
    4. Why choose our company chicken cage?
    1) Two factories in China and Nigeria produce and sell automatic cage system and semi automatic cage system.And we also have 3 tier layer cage and 4 tier layer cage .Customer can choose 96 capacity battery cage, 120 capacity battery cage ,128 capacity layer cage and 160 caapcity chicken cage
    2) The chicken layer cage frame no rust, deformation and sagging of mesh in 10 years
    3) Free design of chicken house size and free farm development consultant
    4) Good service and complete after-sales service system
    We have professional transport and installation team,when you book cage from our company ,we can give you installation guidance or provide door-to-door installation service
    5) Each year visit client chicken farm and help them develop the farm
    5. Lagos ,Nigeria stock battery cage
    4 tier 128 capacity battery cage
    4 tier 160 capacity layer cage
    5 tier 200 capacity layer chicken cage
    Cages package if full container ,put into container directly
    If less full container,cages will put in wooden box or pallets to do package
    Wooden box and pallet package
    6. Company introduction
    Hebei Best Machinery And Equipment ltd
    African branch, made in China, design chicken farm house and chicken cage layout freely.And supply delivery and installation service,And share farm rearing experiences and skills
    Sales departments are more than 20 professional staffs, you will get exact quotation or budget the first time,
    every delivery firstly will be passed by Quality testing department, the installation team are ready to working
    for you anytime, also 24 hours working in after-sales service department
    Factory covers 24,000 square meter, 2000 sets of chicken cage and 100 sets of poultry equipment per month
    is lowest production ability and 80% of output are Automatic mechanization, from raw material to finished
    products every processing compliance with quality standards
