Good Price For Automatic Layer Cage System Sale In Farm Chicken
Cage Adela

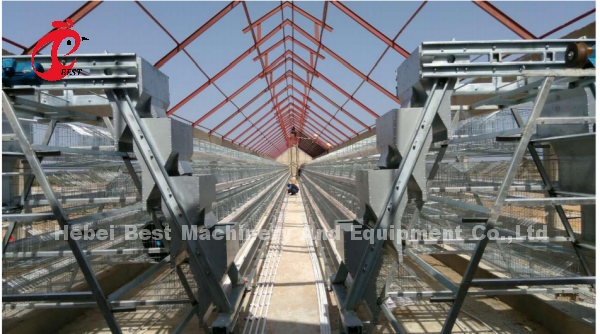

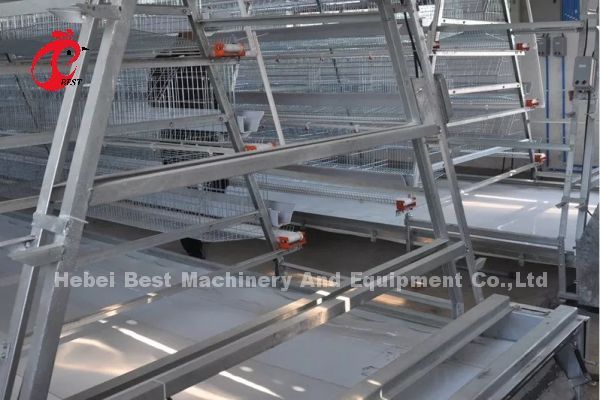

1. A type automatic cage system
Layer breeding equipment has the advantages of simple structure,low
cost,automatic feeding, automatic water,automatic dung
cleaning,environment automatic control characteristics.The coop
scaffold is made of material with hot dip galvanizing process,and
have a lifetime of up to 15 years
A type poultry battery cages can be equipped with automatic feeding
system and egg collection system,which will save a lot labor work
and is easy to control the feed quantity.It is effective in large
scale production.qua
Cage size
| 3 tiers | 4 tiers |
| Material | Q235 | Q235 |
| Cage size (m) | 2.2m by 2.4m by 1.65m | 2.2m by 2.4m by 1.95m |
| capacity | 120 birds | 160 birds |
| Feeding and drinking | Automatic | Automatic |
| Surface treatment | Hot galvanized | Hot galvanized |
| lifespan | More than 20 years | More than 20 years |
| Birds quantity choose | Less than 20000 birds choose more,also depend on the house size | More than 20000 birds use more |
2. Feeding system
Layer breeding equipment feeding system adopts the seeding and
straddle type feeding machine,uniform feeding control,reliable
performance, simple operation,feeding speed every 5-10
minutes,walking by remote control,easy to manage
3. Drinking system
Drinking system is fully automatic ,water pressure regular install
at one side of cage,connect water pipe,use the water pressure
difference to allow water flow to each nipple drinker,we use ball
valve type nipple drinker.Its 360º contact ensures all angle access
to water with high sensitivity,small triggering force and good
water tightness,which not saves water but also prevent too much
moisture in chicken house
4. Egg collection
Egg collection machine include the machine frame,control
cabinet,motor,conveyor belt,egg belt clip.The machine usually use
in the middle and large chicken farm,mechanical automatic,easily
operate and save labor cost,lower egg broken rate,increase the
production and profit
5. Manure clean
Dung cleaning traction and crawler optional,traction type dung
plate use hot dip galvanizing,the service life more than 10 years
and It can traction 2-3 guano and track use polypropylene PP belt
6. Advantage of the automatic system
It is used for lms scale farm
Mechanical automatic,easily operated,save labor cost
Lower noise,high laying rate.
Lower broken egg rate,increased the profit
Uniform feeding control,reliable performance, simple operation
Longer lifespan, up to 15 years
7. Installation and debugging of main components
1) It is required that the chicken house must be hardened,the
ground is flat,there is no convex and concave place,and the slope
should not exceed 2 degrees
2) The cages should be placed straight,and by adjusting the foot
cups,the height deviation between the two cages should not exceed
0.5 mm,and the distance between the two legs should not exceed 0.5
mm
3) The lines and control lines are installed by professional
electricians and fixed firmly.
4) The controller must contain leakage protection device.
5) The test operation should be carried out by professionals on the
control panel by jogging,and multiple people should cooperate to
check whether the equipment is scratched,stuck, skewed, etc
6) If problems are found,find out the reasons and solve them in
time.Start up and run under the condition of confirmation that
there is no error
