3 tier 4 tier Easy Install Galvanized Imported Chicken Cage For Point Of Layers Doris

Chicken cage specification

Cage classification
Chicken cages are divided into full-automatic chicken cages and semi-automatic chicken cages. The fully automatic chicken cage is suitable for farms above 10000 chickens, including automatic feeding hopper system, automatic drinking water system, automatic fecal cleaning system, automatic egg collection system, automatic temperature control and light control system, automatic ventilation system. Semi automatic chicken cages include chicken cages and automatic drinking water systems. Other fully automatic equipment can be selected separately to follow up the overall budget of the farm
Chicken cages are also divided into layer cage, broiler cage, pullet cage and parent cage. Customers choose according to the types of chickens raised on the farm. The surface treatment process can be hot-dip galvanized chicken cages or cold galvanized chicken cages. The number of cage can be 2 tier or 3 tier or 4 tier or 5 tier or multiple. The trough can be large or small. The size of the chicken cage can be customized
Chicken cage frame also have two types .hot dipped galvanized cage frame and cold galvanized cage frame.Hot dipped cage frame no rust in 10 years with strong quality.And no deformation in 10 year

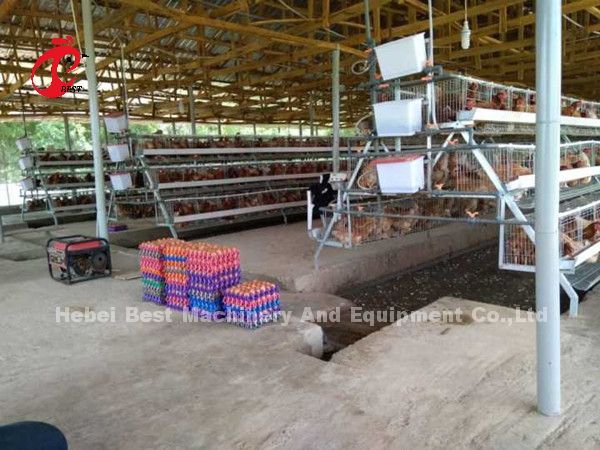

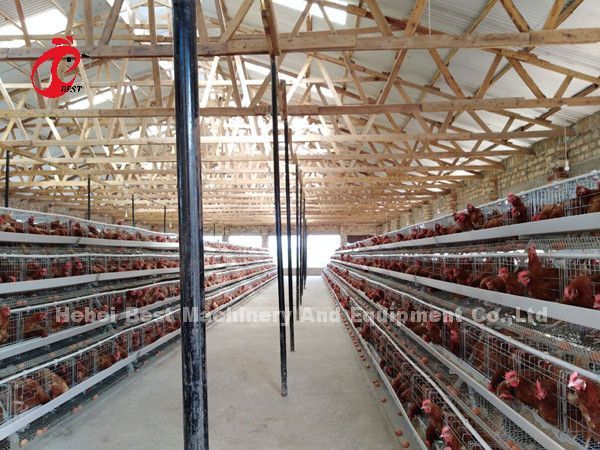

Hot sale A type 3 tier 120 capacity layer cage introduction

Chicken cage details part description
1. Cage mesh
Top mesh,bottom mesh,partition mesh,cage door
The surface treatment of mesh can be divided into hot galvanizing, cold galvanizing, PVC, aluminum alloy and other materials
Africa has a hot and rainy climate, and hot-dip galvanized mesh is the best choice. If the purchase budget is limited, you can choose cold galvanized
The cage door of the chicken cage can be made of a lifting door or a sliding door

2. Cage frame
A type cage frame
H type cage frame
You can customize the production of 2 tier, 3 tier, 4 tier, 5 tier or multi-layer chicken cages
Customer also can choose U type cage stand or Anger bar frame.U type cage frame more stronger than angel bar frame,but cost also higher

3. Automatic drinking system
Water tank or pressure regulator connect water pipe with straight pipe,elbow pipe and tree way pipe ,used chicken house length less 100meters and each tank can contain 10 liter water. The transparent water tank can clearly see the water level and remind farmers to add water timely
The water tank bottom have holes connect with water pipe and inside have floating ball to ensure the water not overflow.
Nipple drinkers with stainless steel rotate 360 degrees and no water leaking. Safety and clear water for chicken,reduce birds death rate and disease rate.Customers also can choose nipple drinker with cups.When chicken mouth touch the nipple drinker, the chicken can drink water freely.Slowly, the chicken will form its own habit of drinking water. And when chicken not touch the nipple drinker, the water stop flow
Water pipe use new material ,lifespan over 5 years and have 2 type .one type is water pipe with holes used together with nipple drinkers.And another type is water pipe no holes and used connect water tanks and water pipes
Filter sand and other impurities in the water source and installed above the water tanks
Dosing device is common medicine can be added to the chicken water source

4. Semi automatic feeding system
Feeder trough-need people put chicken feeds into feeder trough .then chicken eat freely
Feeder connector-connect feeders together with cages
Feeder cover used in the end of feeder trough and prevent chicken play feeds and resulting waste of feeds.And including left feeder cover and right feeder cover

China Chicken Cage and poultry equipment Factory

Hebei Best Machinery And Equipment Co., Ltd., found in 1996, 360KM from BEIJING city, from raw materials to finished products, strict implementation of ISO 9001:2008 quality management system

Nigerian branch chicken cage and poultry equipment factory

After Sinoma Office, 200 Meters Near Danco Filling Station, Lagos/Ibadan Expressway, Lagos State, Nigeria, production line is from our Chinese factory directly, 3 to 5 years longer using than local chicken cage

Our market

Products have been exported to many countries, such as Australia, Cameroon, Grenada, Ghana, Gambia, Guyana, Honduras, Haiti, Hungary, India, Kenya, Sir Lanka, Madagascar, Malaysia, Mozambique, Namibia, Nigeria, Pakistan, Seychelles, Trinidad and Tobago, Tanzania, Uganda, United Kingdom, South Africa, Zambia, Zimbabwe,etc
Now we had office and warehouse in Nigeria, Ghana, Kenya, Uganda, etc


Our products

Our Poultry Cages include the Poultry Battery Cages, Baby Chicken Cages, Broiler Cages, Chicken Layer Cages, grounding feeding system and incubator. And also Poultry Equipment include Automatic Feeding System, Automatic Manure Cleaning System, Automatic Egg Collection System and Chicken Farm Exhaust Fan, etc
