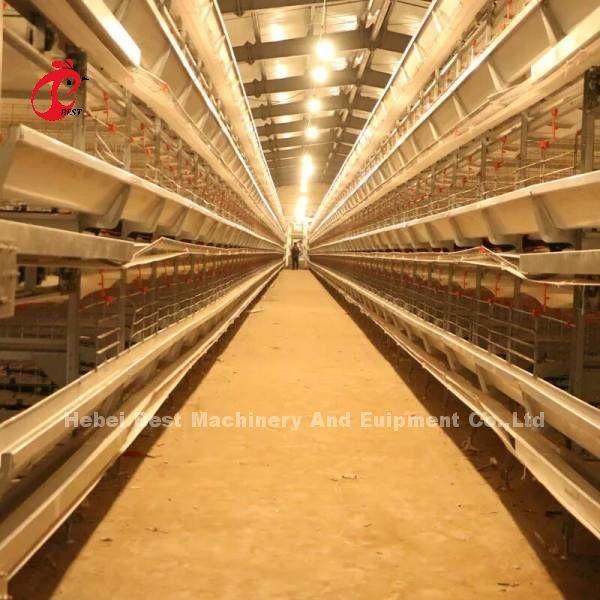

Full Automatic H Type Battery Cage Is Hot Sale In Africa Market Chicken Cage Mia

1. Feeding system
1) The main feed line can work automatically. Feed will be dispensed evenly in the feed trough
2) V-shaped feed trough may avoid “feed left at edge” to prevent the feed from accumulating and mildewing
3) The magnetic end device can effectively clean the accumulated feed to avoid mildew, ensure birds healthy and save labour
4) Proven design and stable running can prevent maintenance for the most part

2. Drinking system
1) Water front kit: It includes Dosatron medicine doser, high quality filter, pressure-control valve, and electronic water meter to record water consumption
2) Pressure regulator: Water pressure in the drinking line can be adjusted by turning the knob under the regulator. When you want to rinse the drinking line, just turn to “flush” position, then water will be forced through the pipe at high pressure.
3) Drinking line: Layer cage system is equipped with a V-shaped water trough. The nipple drinker is double-sealing, which will ensure no water leakage
4) Optional alarm system will give an alarm whenever there is no water at the end of drinking line
5) Water flow-rate of nipple drinker is 40-50ml/min, which can meet the drinking demand of layers at the same tie keep manure dry

3. Automatic egg collecting system
1) High quality PP egg belt (woven or perforated belt), low extension rate, little contraction or expansion caused by changing temperature.
2) Optional egg saving wire ensures that eggs will roll smoothly to the longitudinal egg belt. Belt moving time and interval can be adjusted as per customer’s requirements
3) Proven design ensures stable running, maintenance-free and lower broken egg ratio
4) Transversal egg conveying system can be chosen. All eggs will be delivered to outside of poultry house. This can save labor cost and reduce the contact of workers with birds.Our central egg collecting system can work with capacity up to 60000 egg/hour

4. Manure removal system in cage
1) High efficiency motor ensures the belt transmission stable and reliable
2) Rubber-coated driving roller and partial rubber-coated tension-roller make sure that manure will be cleared away from belt and no slippery of belt
3) The manure scraper is a little soft, effectively protects the conveyor belt. Double scraper ensures the cleaning effect of the conveyor belt. PU material, replaceable, with long service life
4) The two sides of conveyor belt support is a little higher, prevent the manure from spilling out
5) High precision products can ensure that manure belt will not deviate from the right position

5. Manure removal system out of poultry house
1) Entirely galvanized steel frame can provide better anti-rust performance outside the poultry house
2) High quality rubber manure belt ensures maintenance-free
3) Proven design and reliable running prevents the manure from dropping on ground

6. Introduction of Product
1) The full set of equipment using hot-dip galvanized material, corrosion-resistant, which ensures the service life of 15-20 years..
2) Intensive management and automated control. Achieve automatic feeding,drinking,manure cleaning,egg collecting and environment control,can help to improve working efficiency and save labor cost
3) High-density raising,saves land and investment
4) Suitable for closed chicken house. Automatic control of ventilation and temperature can meet the requirement of the birds

7. Our service
We also can do cage layout design for customer
We have professional installer to fix all of euipment
We also visit our clients' farms regularly to put forward corresponding suggestions

China Chicken Cage and poultry equipment Factory

Hebei Best Machinery And Equipment Co., Ltd., found in 1996, 360KM from BEIJING city, from raw materials to finished products, strict implementation of ISO 9001:2008 quality management system

Nigerian branch chicken cage and poultry equipment factory

After Sinoma Office, 200 Meters Near Danco Filling Station, Lagos/Ibadan Expressway, Lagos State, Nigeria, production line is from our Chinese factory directly, 3 to 5 years longer using than local chicken cage

Our market

Products have been exported to many countries, such as Australia, Cameroon, Grenada, Ghana, Gambia, Guyana, Honduras, Haiti, Hungary, India, Kenya, Sir Lanka, Madagascar, Malaysia, Mozambique, Namibia, Nigeria, Pakistan, Seychelles, Trinidad and Tobago, Tanzania, Uganda, United Kingdom, South Africa, Zambia, Zimbabwe,etc
Now we had office and warehouse in Nigeria, Ghana, Kenya, Uganda, etc


Our products

Our Poultry Cages include the Poultry Battery Cages, Baby Chicken Cages, Broiler Cages, Chicken Layer Cages, grounding feeding system and incubator. And also Poultry Equipment include Automatic Feeding System, Automatic Manure Cleaning System, Automatic Egg Collection System and Chicken Farm Exhaust Fan, etc
