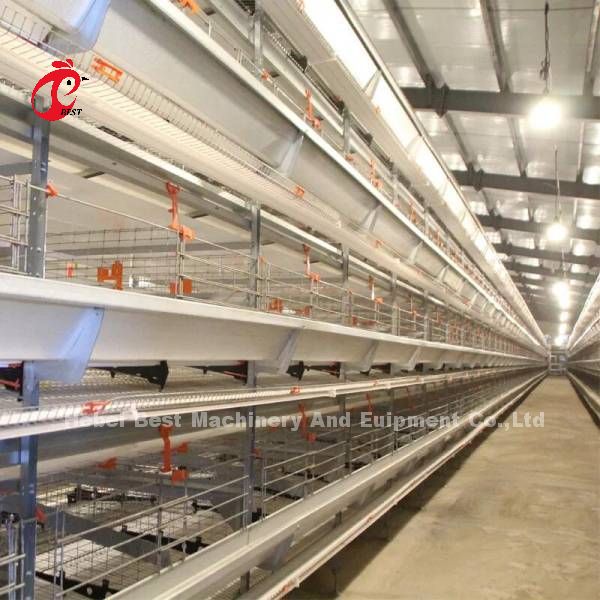

Automatic Poultry Layer Cage Widely Used Poultry Farming Chicken
Cage Mia
1. Material of cage mesh: hot deep galvanized iron wire
Cage box: five kinds of meshes are combined together, back and top
mesh, top and front mesh, bottom mesh, middle part mesh, door mesh
Cage frame: pieces of square pipes or angle bars in different
length to combine and supporting cage boxes and other fittings
Feeding trough: in white PVC material with stabilizing additive
Nipple drinker: material is degradable plastics, 316 stainless
steel ball and touching bar for chicken month
Water pipe and tank: degradable plastics
Installation accessories: connector of water pipe and feeding
trough , cage box clips, cage frame nuts and so on
2. Poultry cage list
| Product name | A type | H type cage |
| Material | Hot dip galvanized | Hot dip galvanized |
| Tiers | 3/4 tiers | 3/4/5/6 tiers |
| Capacity | 120/160 birds /set | 180/240/300/360/544 Birds/Set |
| Size | 430mm*380mm | 430mm*600mm |
| Area of per Chicken | 408.5 | 450 |
| Raising Quantity | > 15000 | >30000 |
| Supporting System | Automatic Egg Collection System,Automatic Feeding System,Automatic
Drinking System, Automatic Manure Cleaning System,Enviroment
Control System. |
3. System advantage
► Feeding system
1) The main feed line can work automatically. Feed will be
dispensed evenly in the feed trough
2) V-shaped feed trough may avoid “feed left at edge” to prevent
the feed from accumulating and mildewing
3) The magnetic end device can effectively clean the accumulated
feed to avoid mildew, ensure birds healthy and save labour
4) Proven design and stable running can prevent maintenance for the
most part
► Drinking system
1) Water front kit: It includes Dosatron medicine doser, high
quality filter, pressure-control valve, and electronic water meter
to record water consumption
2) Pressure regulator: Water pressure in the drinking line can be
adjusted by turning the knob under the regulator. When you want to
rinse the drinking line, just turn to “flush” position, then water
will be forced through the pipe at high pressure
3) Drinking line: Layer cage system is equipped with a V-shaped
water trough. The nipple drinker is double-sealing, which will
ensure no water leakage
4) Optional alarm system will give an alarm whenever there is no
water at the end of drinking line
5) Water flow-rate of nipple drinker is 40-50ml/min, which can meet
the drinking demand of layers at the same tie keep manure dry
► Automatic egg collecting system
1) High quality PP egg belt (woven or perforated belt), low
extension rate, little contraction or expansion caused by changing
temperature
2) Optional egg saving wire ensures that eggs will roll smoothly to
the longitudinal egg belt. Belt moving time and interval can be
adjusted as per customer’s requirements
3) Proven design ensures stable running, maintenance-free and lower
broken egg ratio.
4) Transversal egg conveying system can be chosen. All eggs will be
delivered to outside of poultry house. This can save labor cost and
reduce the contact of workers with birds.Our central egg collecting
system can work with capacity up to 60000 egg/hour
► Manure removal system in cage
1) High efficiency motor ensures the belt transmission stable and
reliable
2) Rubber-coated driving roller and partial rubber-coated
tension-roller make sure that manure will be cleared away from belt
and no slippery of belt
3) The manure scraper is a little soft, effectively protects the
conveyor belt. Double scraper ensures the cleaning effect of the
conveyor belt. PU material, replaceable, with long service life
4) The two sides of conveyor belt support is a little higher,
prevent the manure from spilling out.
5) High precision products can ensure that manure belt will not
deviate from the right position
4. FAQ
1) What services do you provide
We can provide free total solution, include farm construction,
feeding and management, sanitation and epidemic prevention, classic
case and etc.
2) How many years it can use
15-20 years long service life
3) How much per set cage
Different model,price is different.In addition,there are other
complement equipments.Need know how many birds you want to
rear,then we can give you a specific price list with house size
4) Who is in charge of install
Our company will send two engineers to your country to guide
installation and provide training
5) How long is the warrenty
We guarantee one year warranty and lifetime maintenance
