20 Years Lifespan Layer Poultry Farming Automatic Chicken Cage Equipment for 20,000 layers Adela

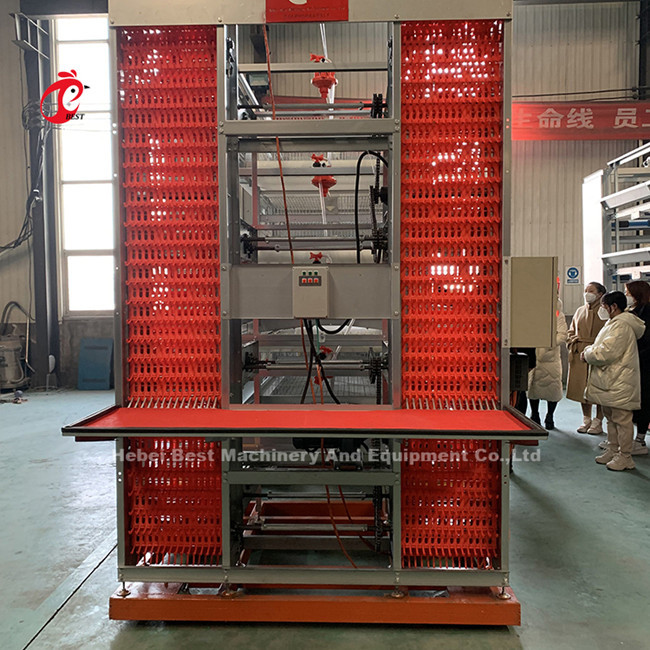

Automatic chicken cage equipment
Now fully automated poultry equipment is favored by more and more farmers, especially in large-scale farms. The fully automated equipment include the cage, automatic feeding system, automatic egg collection system, automatic manure cleaning system and the environment system. We could do the project design according to your birds quantity

Equipment details parameter

Automatic chicken cage equipment details

Cage system
1. Bottom wire is Alu-zinc wire mesh: corrosion resistance is 3-4 times of that of ordinary hot galvanized wire mesh
2. Sliding cage door: it is limited to bending, convenient to operate and easy for taking the chickens in and out
3. Bottom wire: it has a slope of 8 degree and high elasticity because it is placed above the tension wire. This design can protect the eggs during falling and rolling
4. Egg protective damper: it prevents the chickens pecking eggs, and avoids chicken manure falling on the trough on bottom layer
5. Top wire: it is used to prevent the chickens pecking the manure belt. Space above the top wire is big enough for good air circulation

Hopper feeding system
1. The main feed line can work automatically. Feed will be dispensed evenly in the feed trough
2. V-shaped feed trough may avoid “feed left at edge” to prevent the feed from accumulating and mildewing
3. The magnetic end device can effectively clean the accumulated feed to avoid mildew, ensure birds healthy and save labour
4. Proven design and stable running can prevent maintenance for the most part

Automatic egg collecting system
1. High quality PP egg belt (woven or perforated belt), low extension rate, little contraction or expansion caused by changing temperature
2. Optional egg saving wire ensures that eggs will roll smoothly to the longitudinal egg belt. Belt moving time and interval can be adjusted as per customer’s requirements
3. Proven design ensures stable running, maintenance-free and lower broken egg ratio
4. Transversal egg conveying system can be chosen. All eggs will be delivered to outside of poultry house. This can save labor cost and reduce the contact of workers with birds

Manure removal system in cage
1. High efficiency motor ensures the belt transmission stable and reliable
2. Rubber-coated driving roller and partial rubber-coated tension-roller make sure that manure will be cleared away from belt and no slippery of belt
3. The manure scraper is a little soft, effectively protects the conveyor belt. Double scraper ensures the cleaning effect of the conveyor belt. PU material, replaceable, with long service life
4. The two sides of conveyor belt support is a little higher, prevent the manure from spilling out
5. High precision products can ensure that manure belt will not deviate from the right position

Features
1. Automated controlled system
2. High rearing efficiency
3. Designed for rearing and growing
4. Floor saving and cost efficient
5. Easy maintenance and operation
6. Hot galvanized, anti-corrosive, long durability

China Chicken Cage and poultry equipment Factory

Hebei Best Machinery And Equipment Co., Ltd., found in 1996, 360KM from BEIJING city, from raw materials to finished products, strict implementation of ISO 9001:2008 quality management system

Nigerian branch chicken cage and poultry equipment factory

After Sinoma Office, 200 Meters Near Danco Filling Station, Lagos/Ibadan Expressway, Lagos State, Nigeria, production line is from our Chinese factory directly, 3 to 5 years longer using than local chicken cage

Our market

Products have been exported to many countries, such as Australia, Cameroon, Grenada, Ghana, Gambia, Guyana, Honduras, Haiti, Hungary, India, Kenya, Sir Lanka, Madagascar, Malaysia, Mozambique, Namibia, Nigeria, Pakistan, Seychelles, Trinidad and Tobago, Tanzania, Uganda, United Kingdom, South Africa, Zambia, Zimbabwe,etc
Now we had office and warehouse in Nigeria, Ghana, Kenya, Uganda, etc


Our products

Our Poultry Cages include the Poultry Battery Cages, Baby Chicken Cages, Broiler Cages, Chicken Layer Cages, grounding feeding system and incubator. And also Poultry Equipment include Automatic Feeding System, Automatic Manure Cleaning System, Automatic Egg Collection System and Chicken Farm Exhaust Fan, etc
