Hot Galvanized 20 Years Lifespan Full Automatic Feeding Drinking
Manure Cleaning And Egg Collection System Cage For Layers Adela
What is automatic cage system
1) Now more and more farmers abandon the traditional flat farming
mode and use cages instead. With the development of technology,
fully automated poultry equipment is favored by more and more
farmers, especially in large-scale farms
2) The fully automated equipment include the cage, feeding system,
egg collection system, manure cleaning system and the environment
system. These machine together make the farm system automated. Also
according to your require do the design for the machine. Like have
farmer only need manure cleaning machine, or only need feeding
machine, we all could do for you
Equipment details parameter
| Product name | Full automatic cage system for layers |
| Type | A type and H type |
| Tiers | 3, 4, 5 tiers |
| Capacity | 84 -140 layers |
| Lifespan | More than 20 years |
| Warranty | 1 year |
| Material | Hot dip galvanized steel |
| Feature | Complete automatic system |
| Power of machine for 20000 chickens farm | Around 15kw |
| Installation of cage and machine | Supply introduce |
Full automatic system details
1. Cage and frame
1) Punching from the hot dip galvanized steel panels, zinc
275g/sq.m, no welding, all fixed by screws
2) Feeding through: galvanized steel
3) Drinking system: including squre pipes, nipples, regulators,
drip cups, steer wires and installation accessories
2. Automatic feeding system

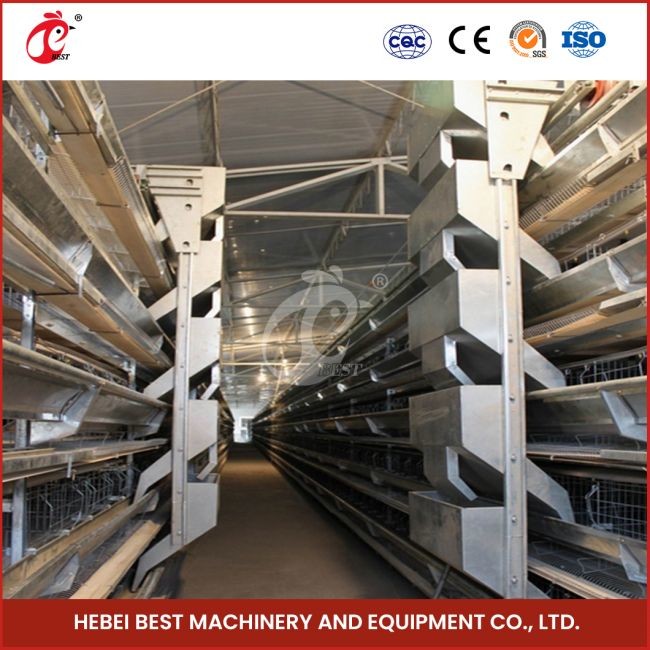

1) Feeding trolley, material is hot dip galvanized steel
2) Feed conveying auger pipe material: PPR, diameter 90mm
3) Feed silo: 5t to 30t can be choosing
4) It is combined with feed hopper, hopper frame and hopper track.
The feed is stored in the silo outside chicken house, the feed is
distributed automatically to the feed hoppers from the feed silos
by the spiral augers installed in the steel pipe, feeding hoppers
move and drop the feed from the beginning to the end of chicken
house
3. Automatic manure removing system

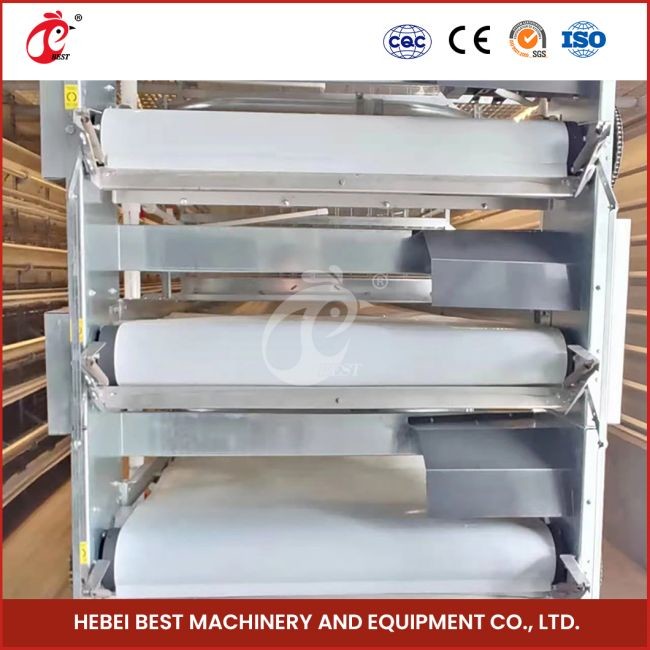

1) The manure-supporting plate of the automatic belt type manure
cleaning machine is installed under each layer of chicken cages.
When the machine is started, the motor reducer drives the automatic
rollers of each layer to work through the chain, and friction
occurs under the extrusion of the forced roller and the automatic
roller. Force, the dynamic bearing manure belt moves along the
length of the cage group, conveys the chicken manure to one end,
and is scraped off by the scraper set at the end to complete the
manure cleaning work
2) Horizontal transport manure device: transport the manure from
house to outside

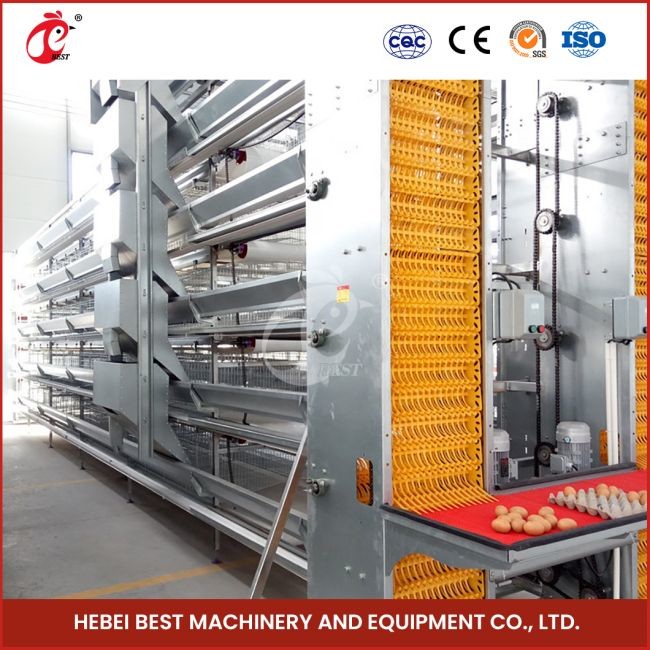

4. Egg collection system
It has the function of preventing the eggs from falling and
breaking, which can reduce the expenditure of manpower and material
resources. It is used in large-scale chicken farms. Automatic egg
collection system includes introduction device, egg picking device,
export device, buffer device, conveying device, sprocket gear and
long drop chain. The motor 0.4KW, 50HZ, 380V
Company introduce

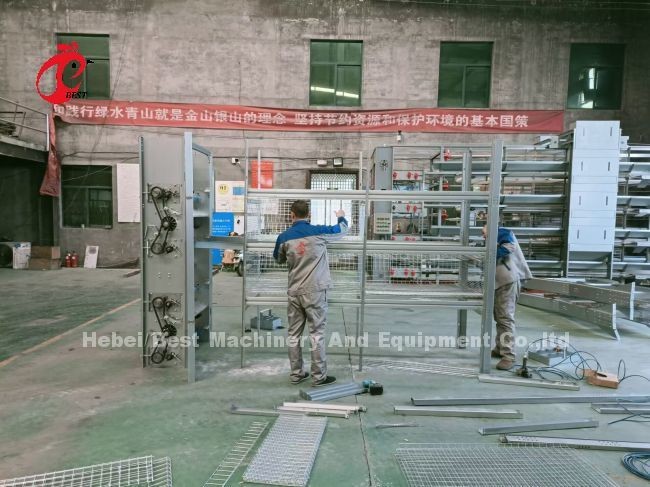

Hebei Best Machinery And Equipment Co.,ltd, 100 workers, 30
machines, numerical control integration, 200 sets of daily output
Our service are from design schemes of poultry farm project,
product introduction, offer quotation, delivery, installation
instruction, equipment maintenance, to farm instruction and so on
20 years poultry equipment research and development and
manufacturing with supporting of advanced German production
technology
Our team is ready to service you 24 hours online
